TWT Water Treatment Systems / Filtration / Point-of-Entry / Ultra-Pure / 600 GPH - Ultra Filtration System
SKU : TWT-UFAC11

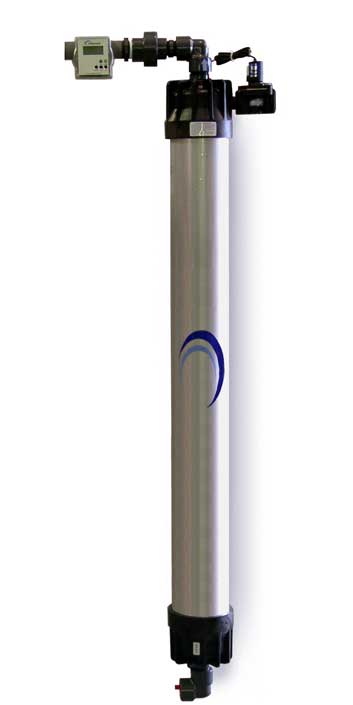

Inside ultra-filters pressure vessel is a network of hollow fibers that reduce microbiological contaminants in the water. Removes impurities as small as .015 microns from source water. 600 GPH Power Supply: 120 VAC Ultra Meter/Controller • 1 inch NPT Meter Controller Specifications Power Supply 110 VAC/12 VDC (50/60 Cycles) Flush Volume: Range 20-1000 Gallons Increment 20 Gallons Flush Duration: Range 10-100 Seconds Increment 1 Second Maximum Flow Rate 10 Gallons per Minute System Specifications Maximum Operating Pressure 72 psi (5 Bar) Maximum Operating Te m p . 40 Degree C (104 Degree F) Max. Trans Membrane Pressure 45 psi (3 Bar) pH Range 3-10 MWCO 100kD Membrane Material Polyethersulfone Inlet and Outlet Fitting Size 1 inch NPT Flush Valve Fitting Size 3/4 inch NPT Shipping Weight 34 lbs. Operating Weight 51 lbs. Average Flow Rate at 50 psi: Gallons per Hour 540 Gallons per Minute 9 Liters per Hour 2045 Liters per Minute 34
